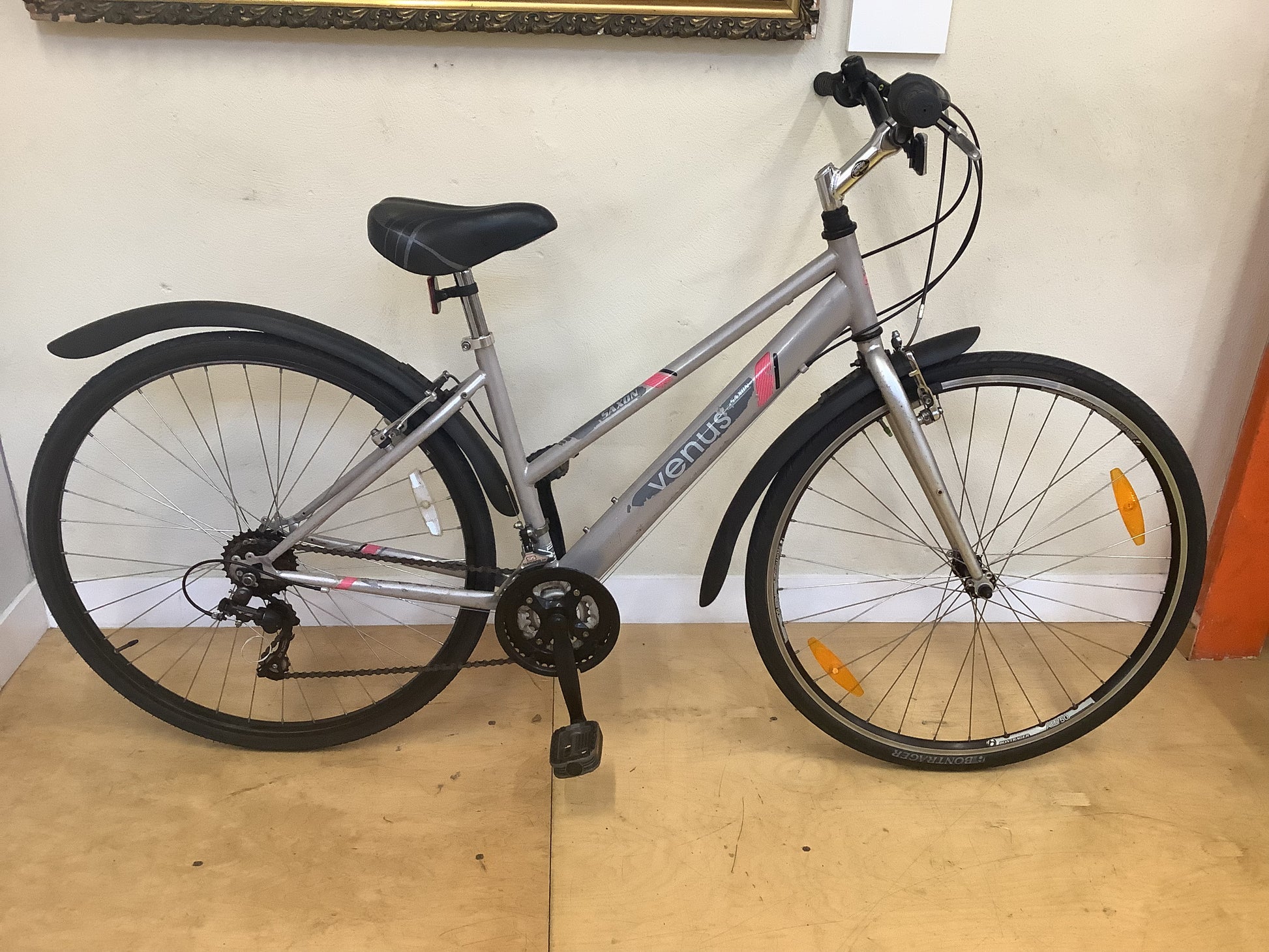

Saxon Venus 28”

Make:

Saxon

Colour:

Grey

Bike Type:

Commuter

Frame Type:

Low Crossbar

Frame Size:

17" / 43cm

Saddle Type:

Wide

Shifter Brand:

Shimano

Front Gears:

3

Wheel Size:

28" / 700C / 622

Tyre Width

1.35" / 35mm

Seatpost Material:

Steel Alloy

F 1st Gear Teeth:

24 t

F 2nd Gear Teeth:

34 t

F 3rd Gear Teeth:

42 t

Chainring BCD:

One piece

FAxle Width:

100 mm

Headset Type:

28.6, Threaded, EC

Seatpost size:

25.0 mm

Fork Rake/Offset:

45 mm

Chainstay Length:

450 mm

Wheelbase:

1070 mm

Part Replaced or Work Note

Inner gear cables x2

Inner brake cables x2

Short hand grips

8 speed quick link

Reconditioned Bicycle Checklist - Job Sheet No.: RDCC-3309

Model:

Venus

Approx. Year:

Frame Material:

Steel Alloy

Fork Material:

Steel Alloy

Height min:

4' 10" / 147cm

Height max:

5' 2" / 157cm

Handlebars:

Riser / Flat

Back gears:

6

Tyre Type:

Street

Front Brake:

V-Brake

Back Brake:

V-Brake

Largest B Gear:

28 t

Smallest B Gear:

14 t

Gear Range:

283%

Crank Length:

170 mm

B Axle Width:

135 mm

Crank/BB Axle:

Square Taper, JIS

BB Standard:

BSA, 68, Cartridge

BB Axle Length

119.0 mm

Wheel Hubs:

Loose Bearings

Stem Length

95 mm
